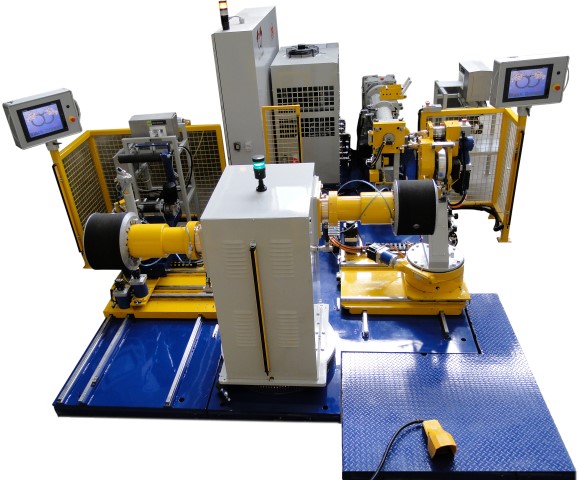

Black Dragon 90

State-of-the-art automatic Building machine made by 1 cold feed extruder with 90 mm diameter, designed to apply tread on the buffed casings with the strip-winding method, 1 cold feed vertical extruder with 40 mm diameter for the application of the sidewall, and a rotating turret with two expandable chucks, so that while on one chuck the tread is being applied, on the other side simultaneously the sidewall can be applied, allowing a fully automatic bead to bead application.

Version for truck tyres equipped with chuck unit for tyre sizes 15”-24,5”, with hydraulic opening.

The machine can also be equipped with the new patented Rubber Dust Applier, which will apply automatically the rubber powder above the sidewall strip, thus reducing the cycle time since normally the rubber powder is applied manually after the building process.
